The frame is welded from steel plates into a box-shaped skeleton structure. It is the main component of the electric locomotive
and is divided into two chambers by a partition. The front chamber and the roof together constitute the driver's room. The
driver's room has driver operating facilities such as the speed governor. The rear chamber is the mechanical room, which is equipped with the running gear, brake device and some electrical equipment, such as electric motors.

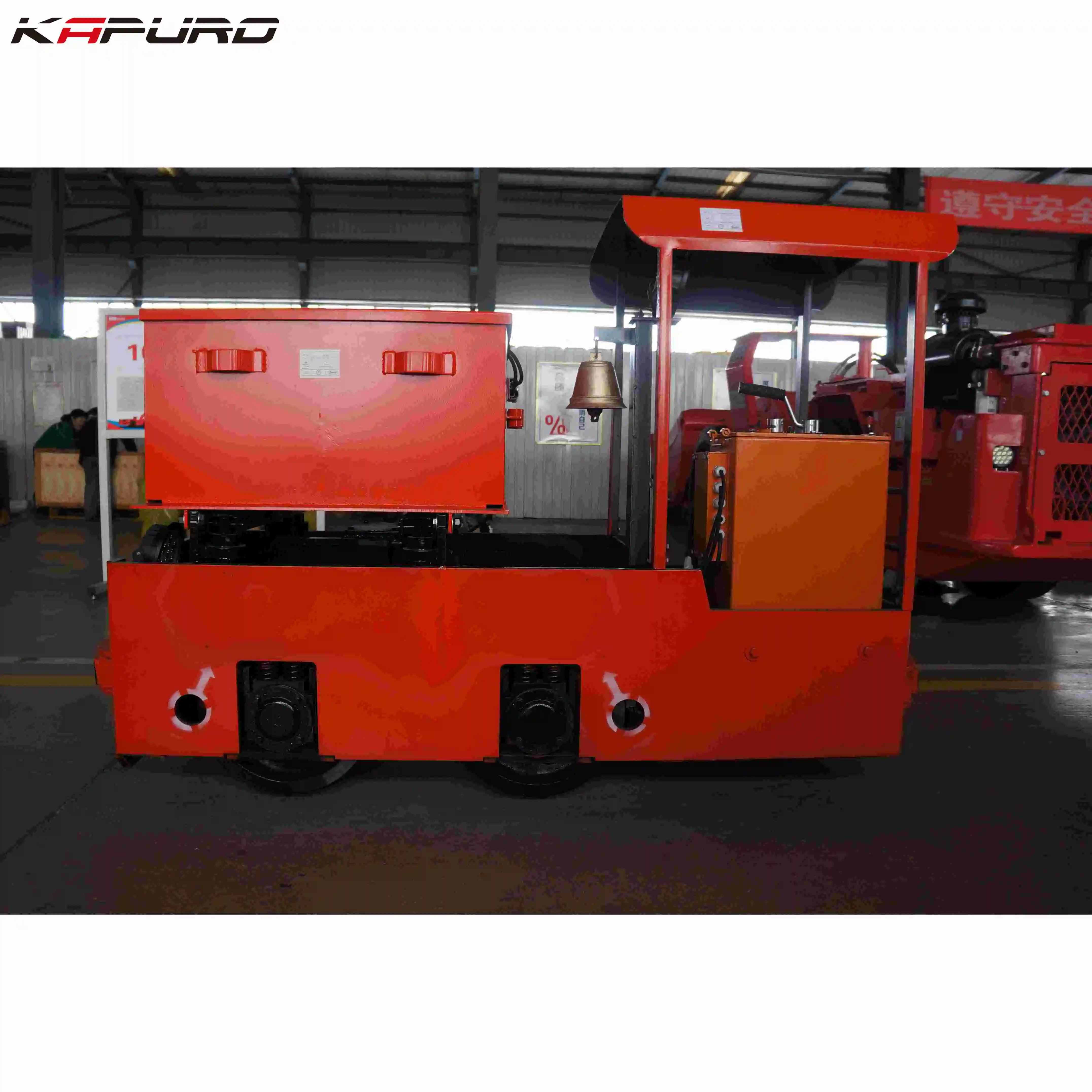

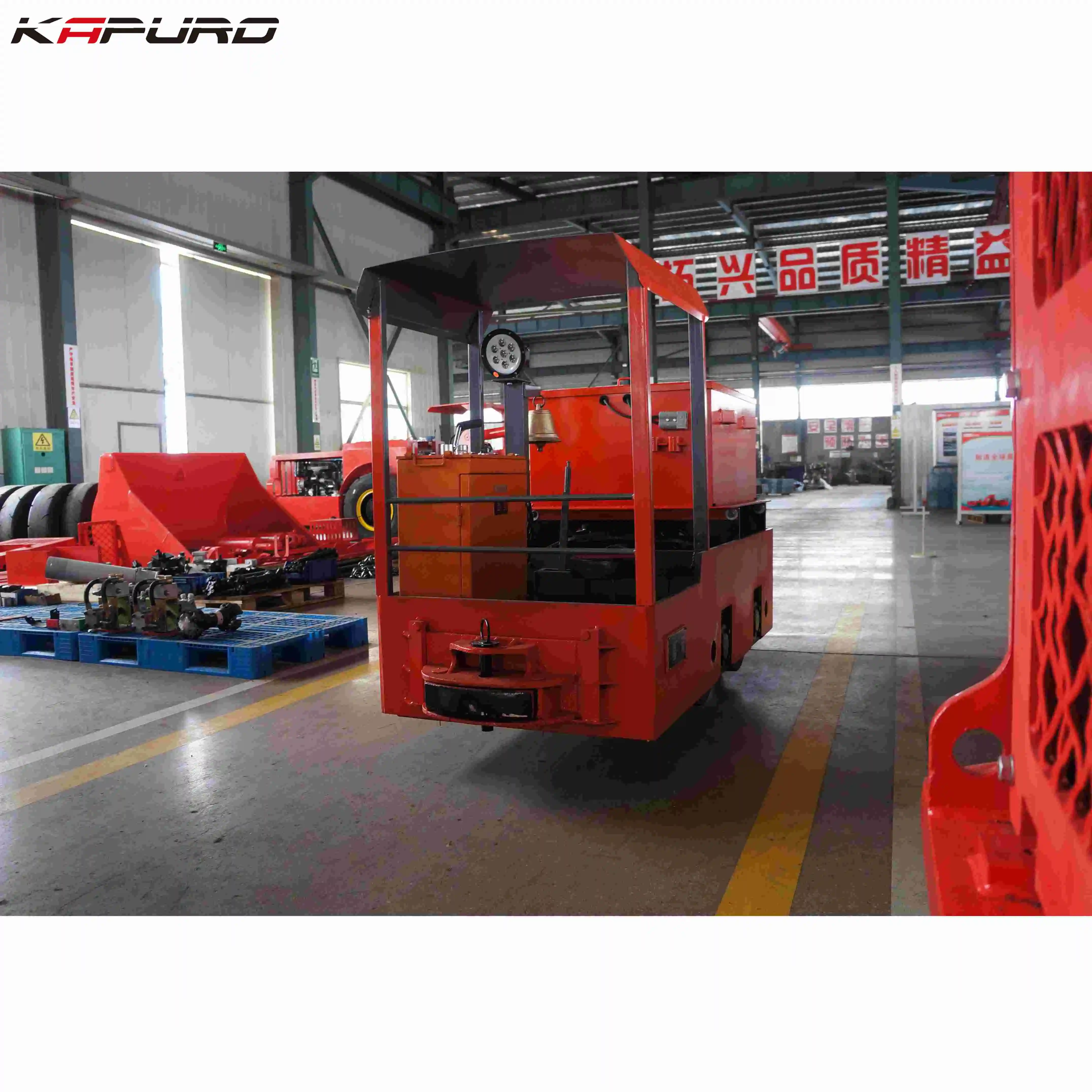

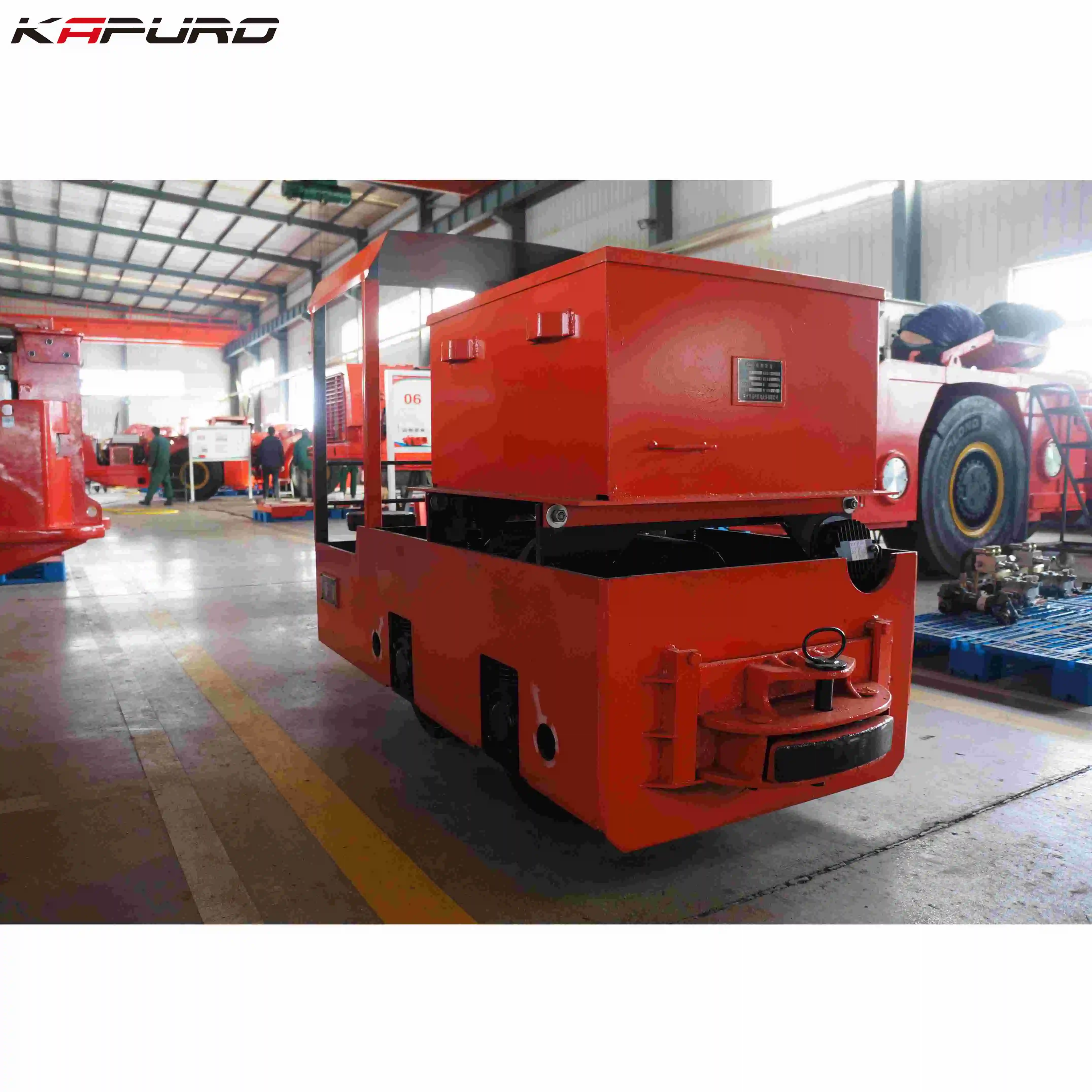

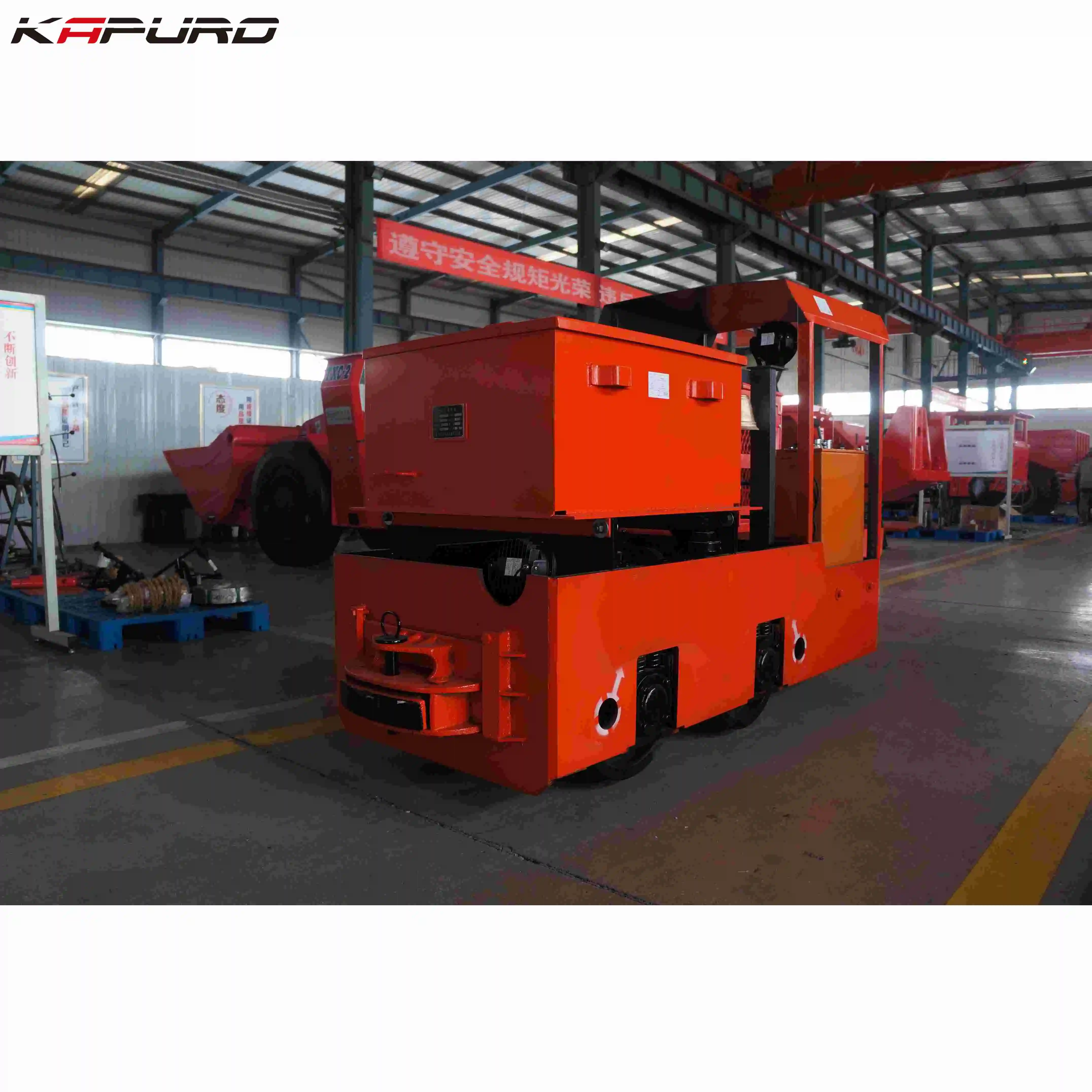

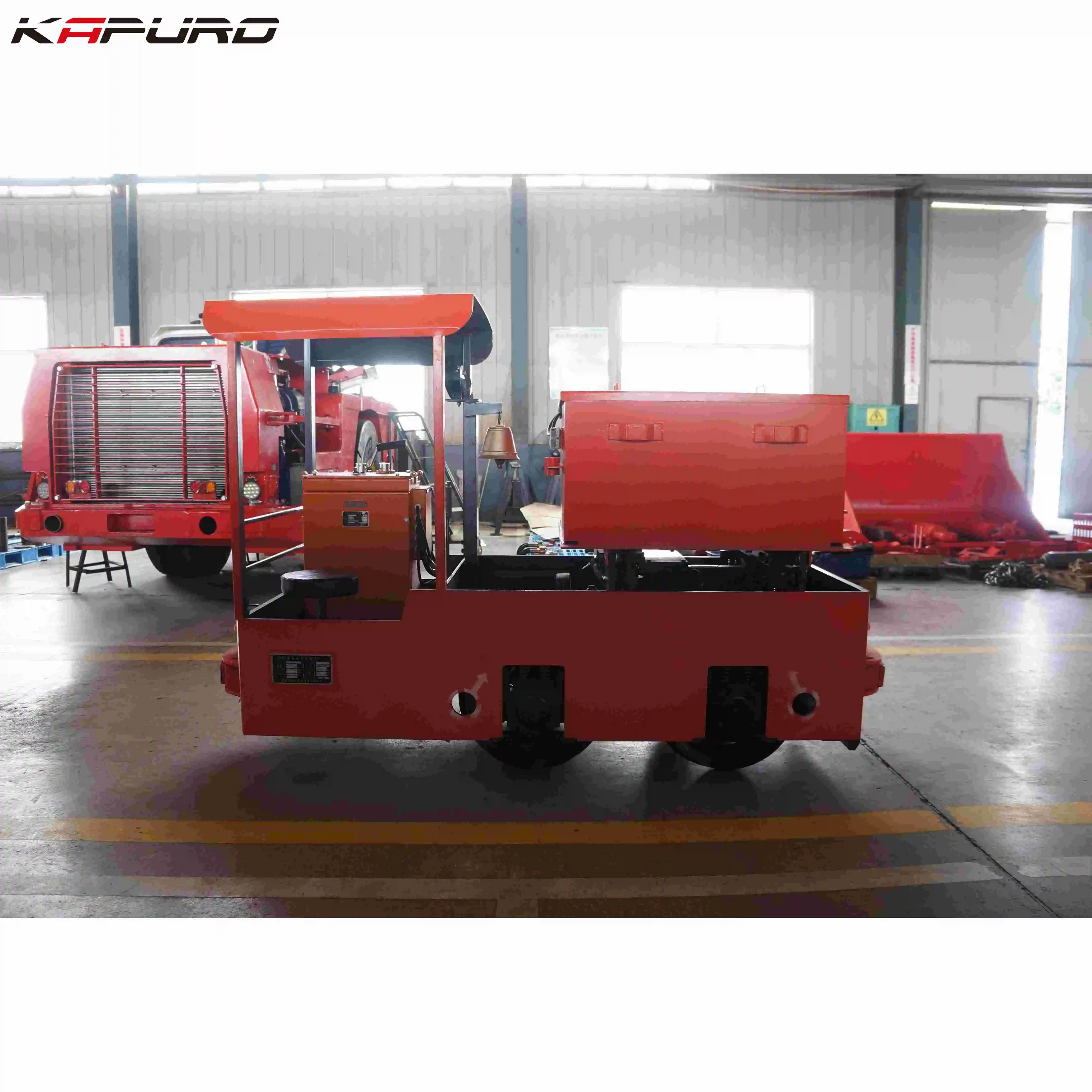

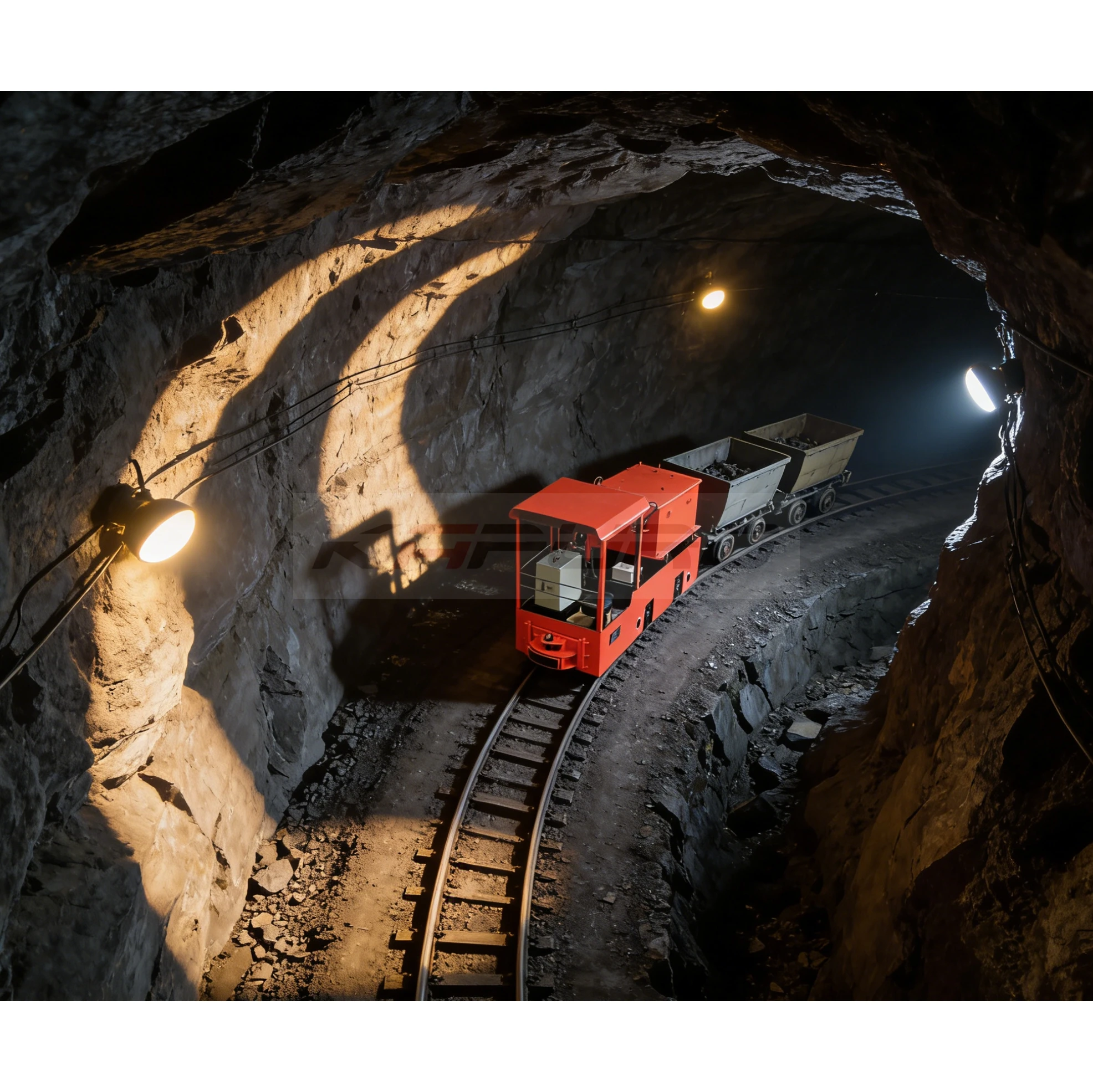

Kapuro 2.5 Tonne Narrow Gauge Diesel-electric Locomotive with Motor & Gearbox for Mine Tunnel Transportation
Description
Product Name |
Electric locomotive |
|||
Type |
TC-2.5T |
|||
Dimensions |
1214x1076x914mm |
|||
Heavies and heavy |
2.5T |
|||
Gauge |
600/762/900mm |
|||
Wheelslip |
650 |
|||

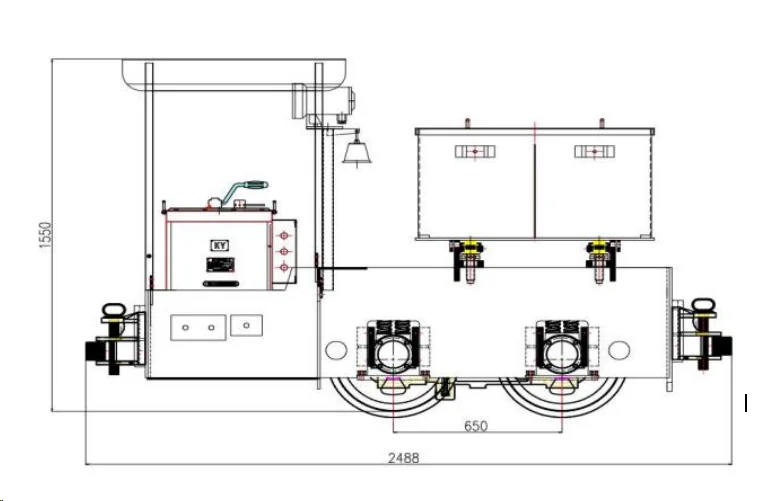

Full length |
2488mm |
|||
Wheel rolling circle diameter |
Ф460mm |
|||
Height from rail surface to driver’s cab top |
1550mm |
|||
Minimum curve radius |
5m |
|||
Sticky adherence |
2.5T |
|||
Hourly traction |
2.55kN |
|||
Hour speed |
4.54km/h |
|||
Rated power |
3.5kW |
|||
Maximum traction |
6.13kN |
|||
Maximum speed |
10km/h |
|||
Current system |
DC |
|||
Rated voltage |
48V |
|||
Control method |
Chopping speed regulation |
|||
Braking method |
Mechanical,hydraulic |
Three core advantages of electric locomotives:
1. High economic efficiency: Electric drive results in significantly lower energy costs compared to diesel locomotives. Simple structure, easy maintenance, low failure rate, and low overall operating costs.
2.Safe and environmentally friendly: Explosion-proof design eliminates the risk of gas and coal dust explosions. Zero emissions and low noise significantly improve the underground working environment.
2.Safe and environmentally friendly: Explosion-proof design eliminates the risk of gas and coal dust explosions. Zero emissions and low noise significantly improve the underground working environment.
3. Powerful and efficient: High traction and strong heavy-load climbing ability ensure high-intensity continuous operation. Robust and durable, adaptable to harsh working conditions, and with a high uptime rate. Mining electric locomotives are a modern, efficient transportation solution for mines, integrating low cost, high safety, and powerful performance.
Frame：
1. Underground Coal Mine Transportation Core Requirements: Explosion-proof electric locomotives are a mandatory safety requirement.
2. Metal Mines and Tunnels Used for transporting metal ores such as iron and copper, or for transporting slag in
railway and water conservancy tunnel projects.
3. Main Haulage Tunnel Carrying out trunk haulage on the main underground mine road.
4. Mining Face Short-distance consolidation and auxiliary transport require a small, flexible model.
5. Special and Trending Scenarios Steep Slope Tunnel: Requires strong traction and forced braking.
railway and water conservancy tunnel projects.
3. Main Haulage Tunnel Carrying out trunk haulage on the main underground mine road.
4. Mining Face Short-distance consolidation and auxiliary transport require a small, flexible model.
5. Special and Trending Scenarios Steep Slope Tunnel: Requires strong traction and forced braking.
Customizable 12T Overhead Wire Electric Locomotive for Tunnel
Pre-sale
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand
customers’demand so that recommend the most suitable products for them.
In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
Post-sale
24 Hours Online service. When the equipment needs repair, we can provide online maintenance guides and support.
Services
We have completed a comprehensive upgrade from an "equipment supplier" to a "mine material handling solutions provider." Today, we are committed to providing you with integrated solutions covering the entire "tunneling, material handling, and transportation" process, offering more comprehensive equipment support to help you significantly improve mining efficiency and reduce overall operating costs.
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand
customers’demand so that recommend the most suitable products for them.
In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
Post-sale
24 Hours Online service. When the equipment needs repair, we can provide online maintenance guides and support.
Services
We have completed a comprehensive upgrade from an "equipment supplier" to a "mine material handling solutions provider." Today, we are committed to providing you with integrated solutions covering the entire "tunneling, material handling, and transportation" process, offering more comprehensive equipment support to help you significantly improve mining efficiency and reduce overall operating costs.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Mucking Loader
Locomotive

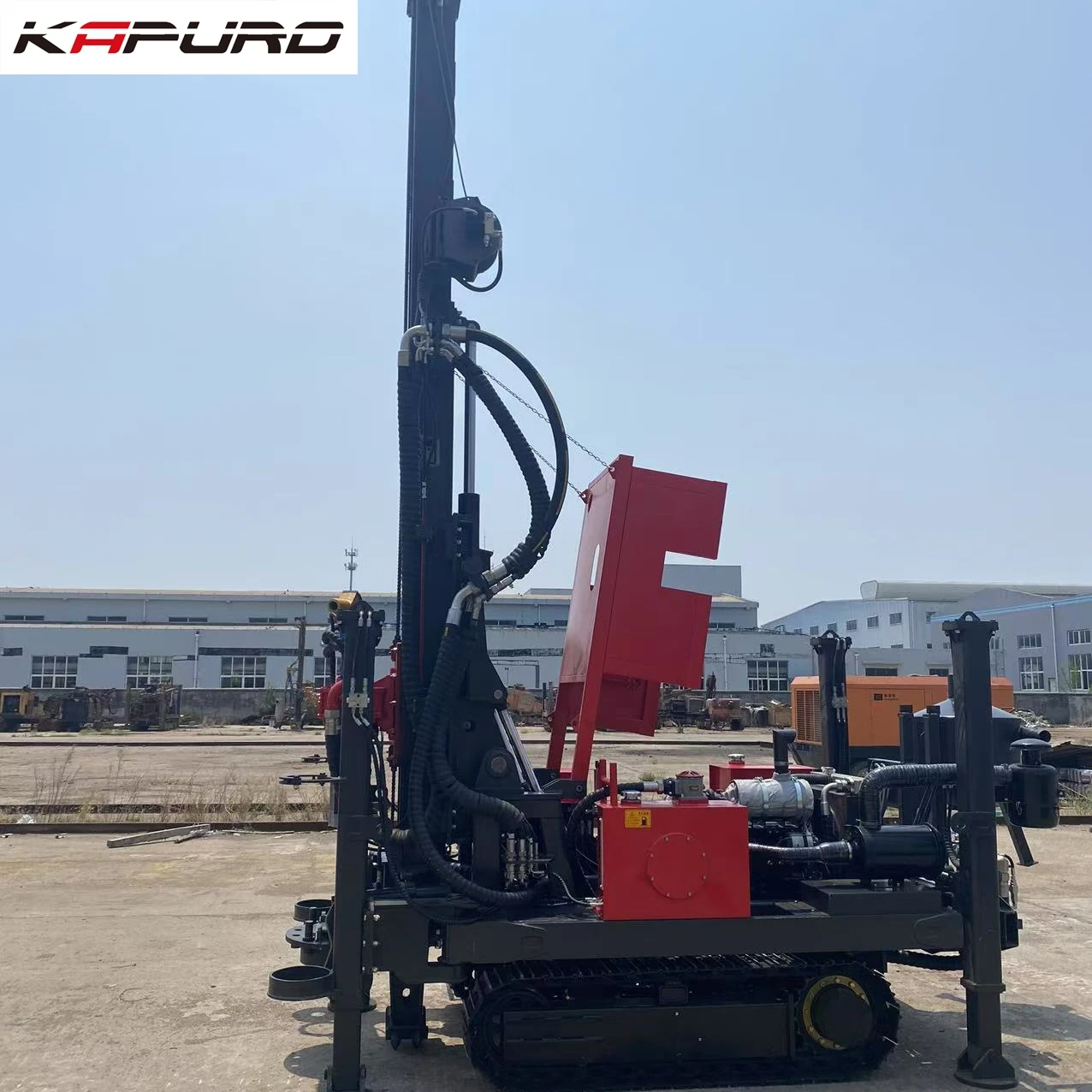

Drilling Rig
