Altitude not exceeding 2000m. Ambient temperature -20℃-+40℃. The average maximum relative humidity in the wettest month is not more than 95% (the average minimum temperature in the same month is not more than 25℃).
Mechanical part
The mechanical part of the locomotive consists of the frame, running gear, suspension system, buffer, brake device, roof, seat and other parts

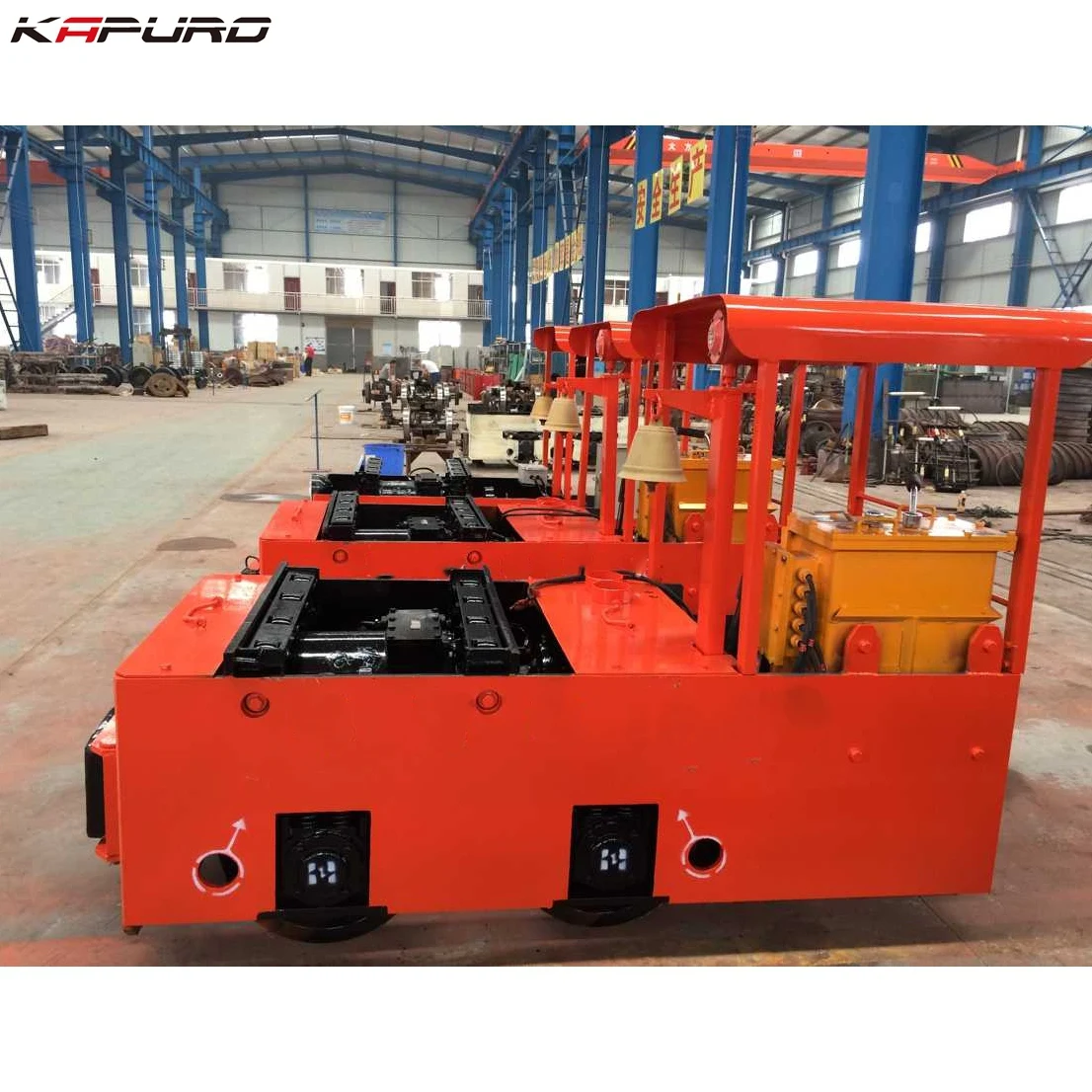

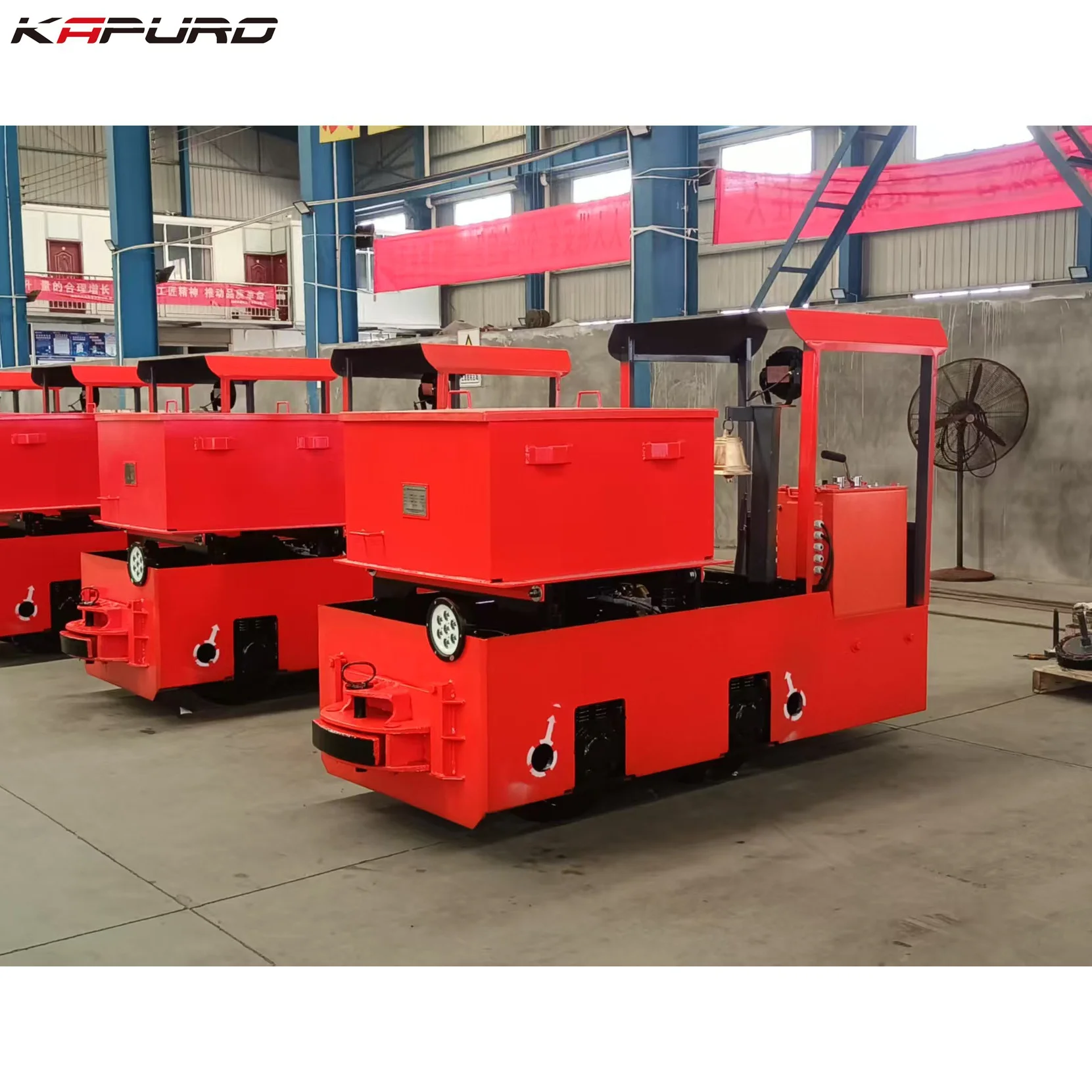

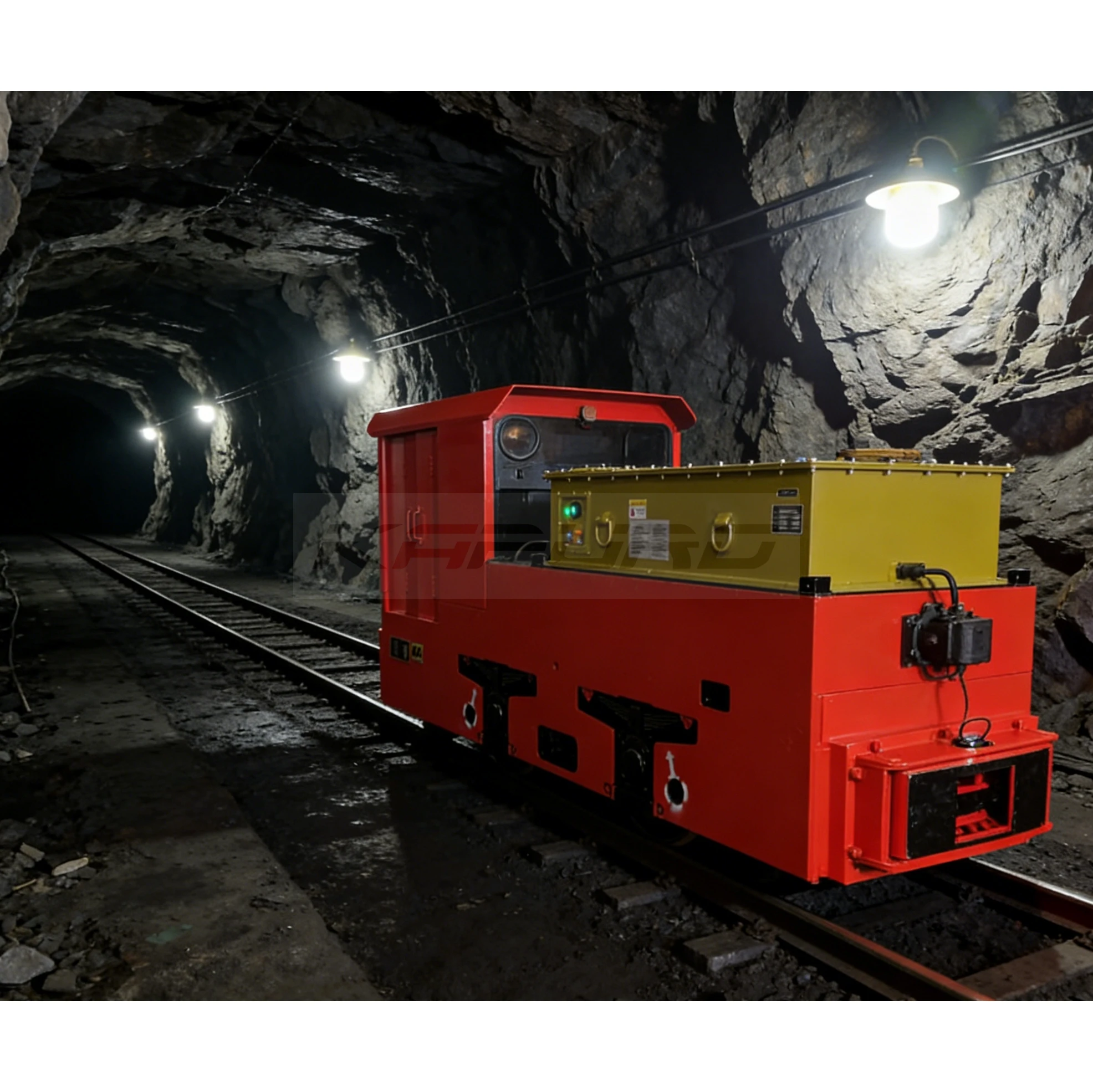

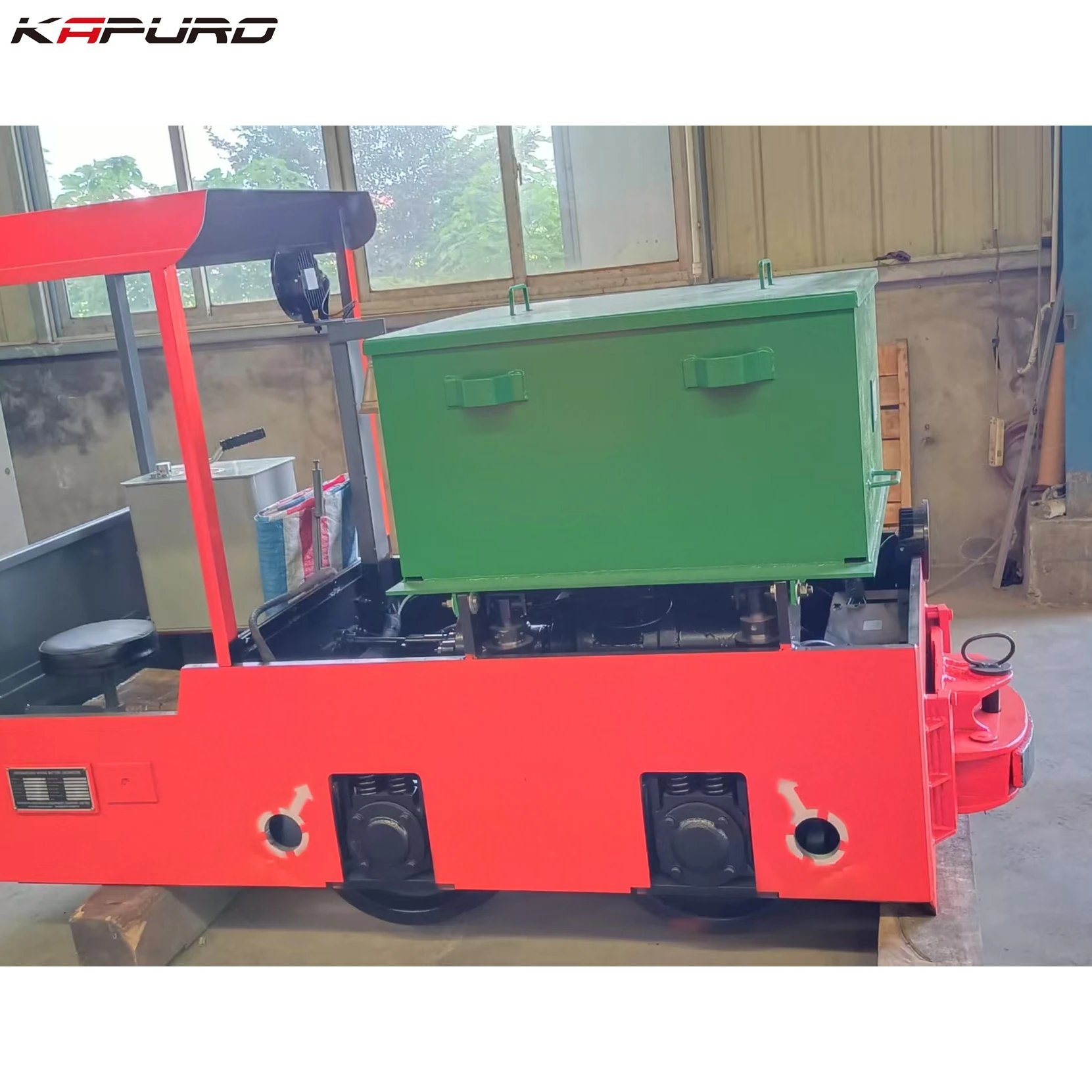

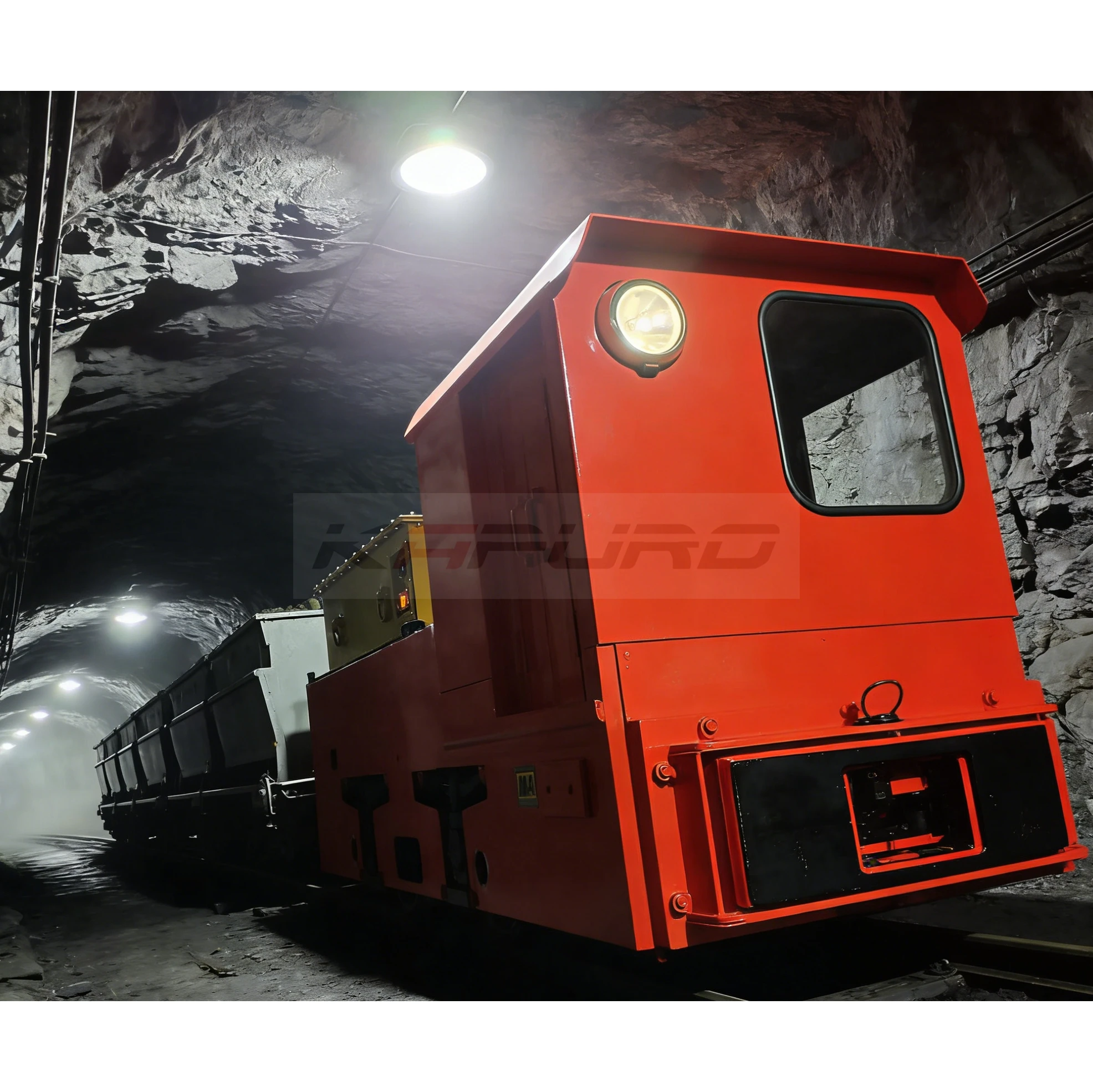

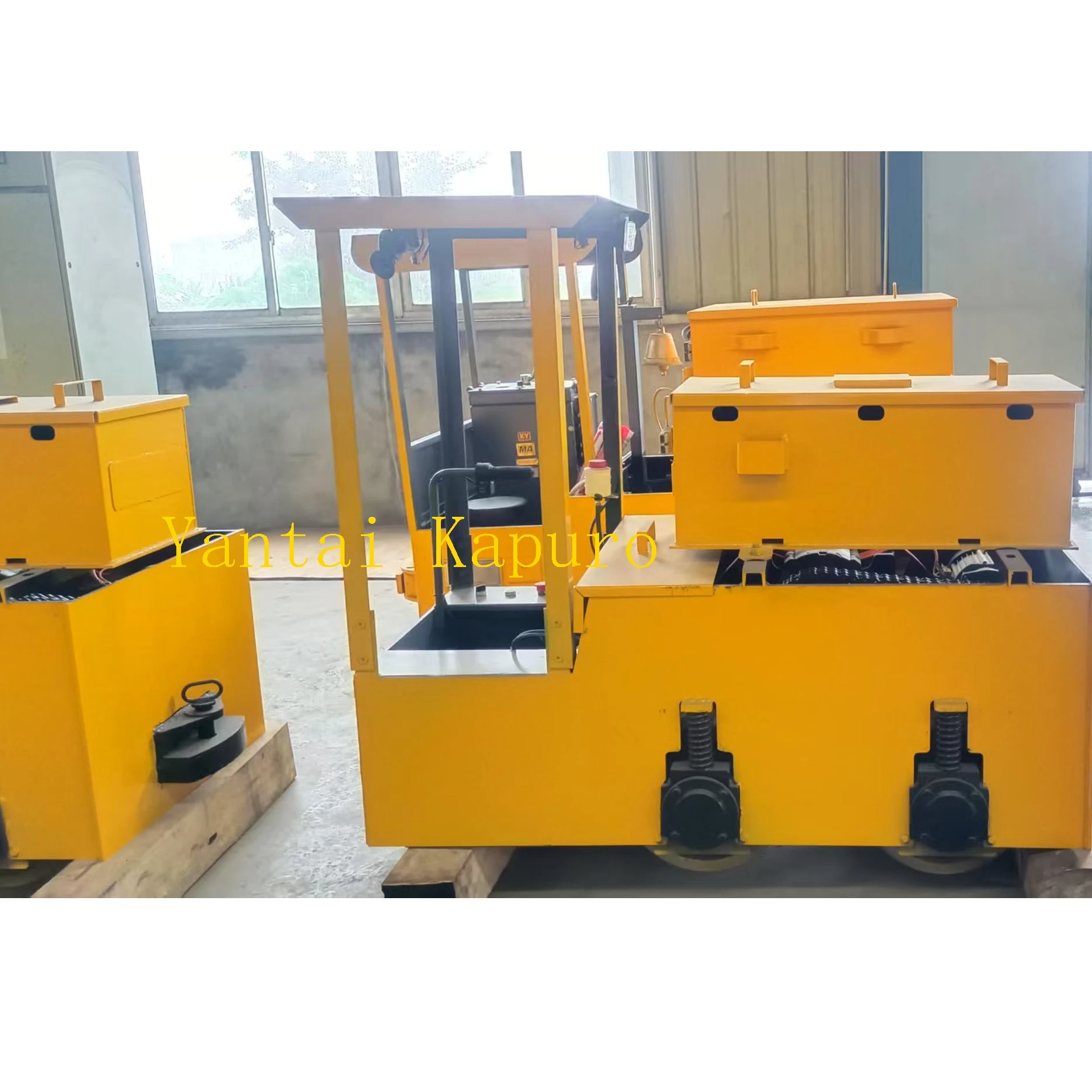

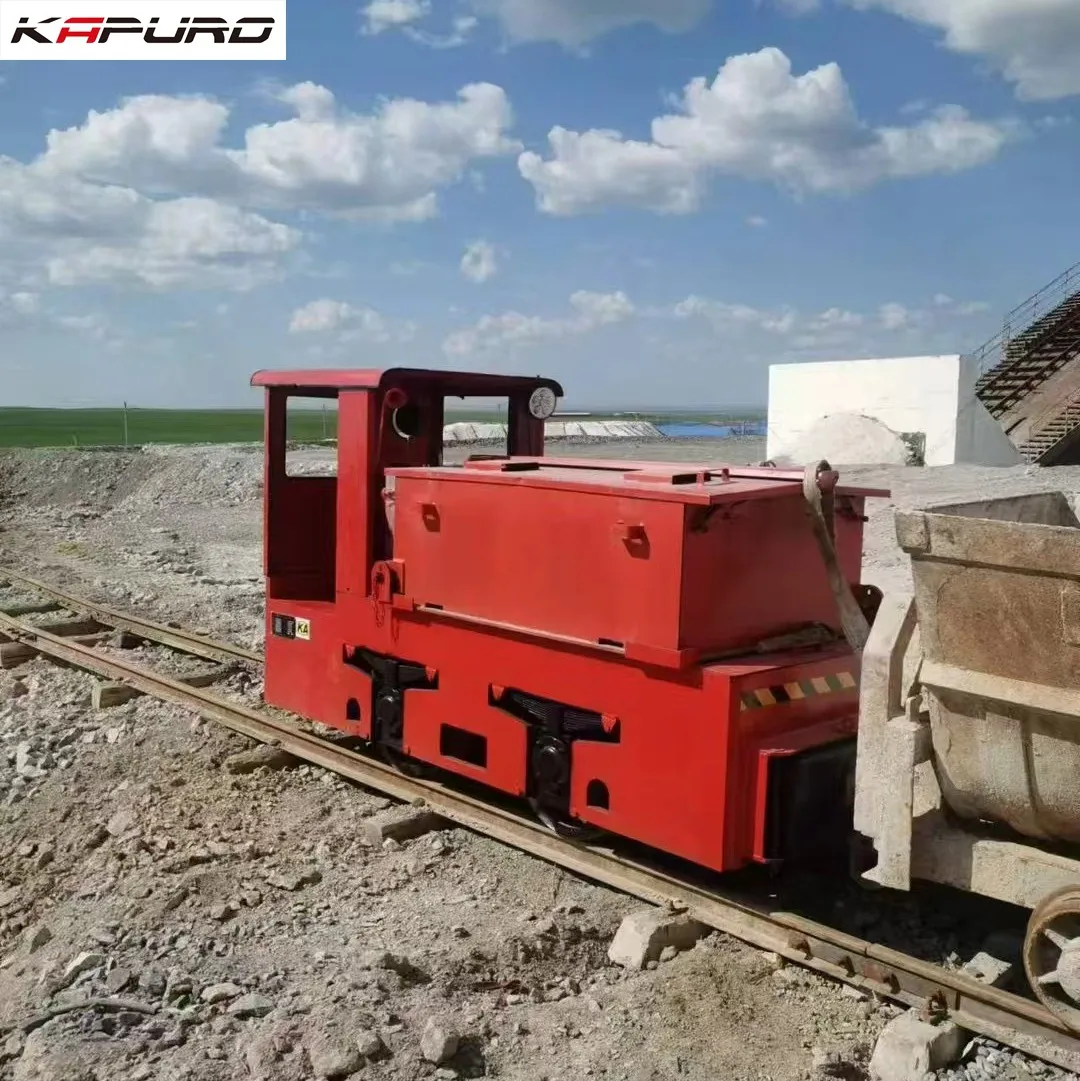

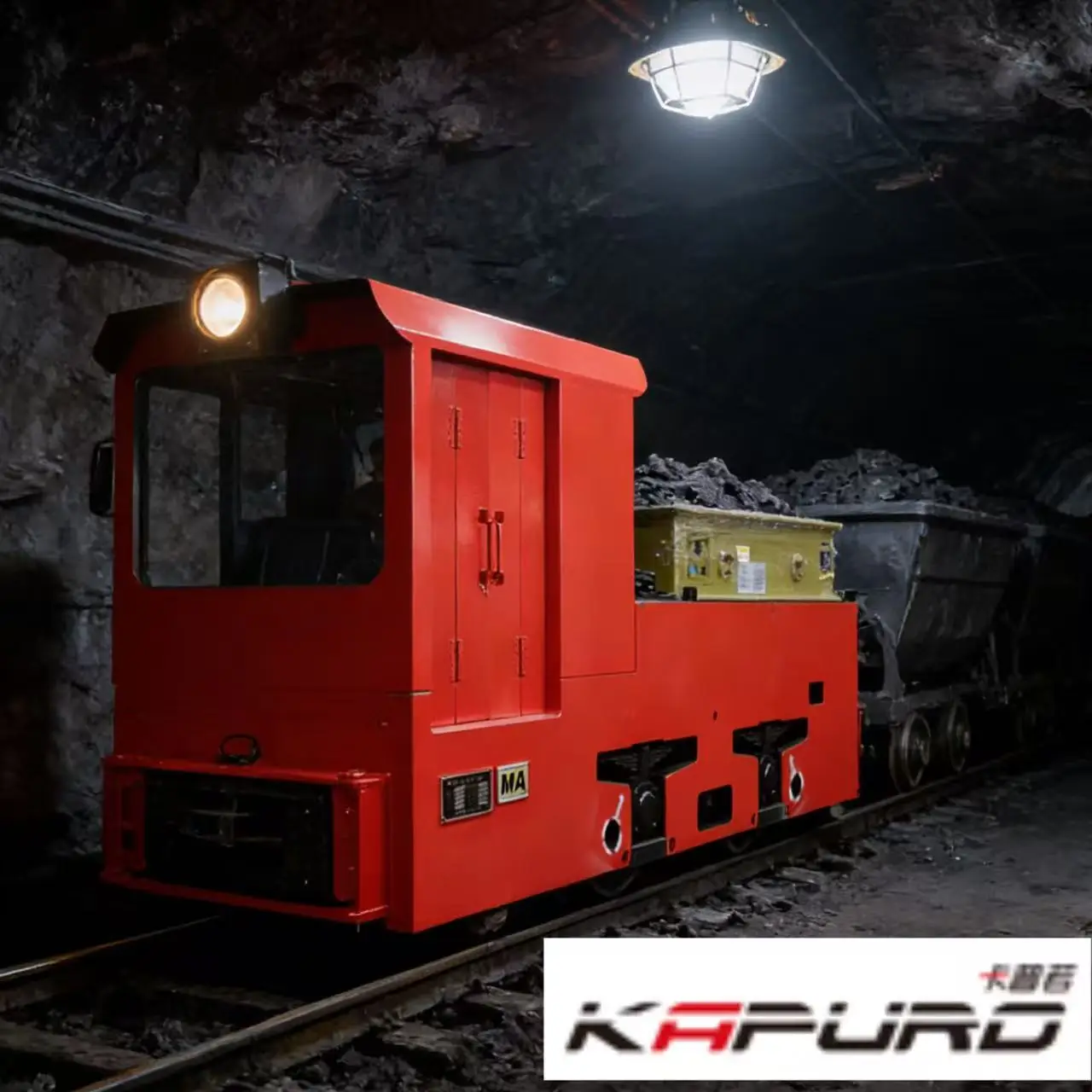

Mining Explosion-Proof Electric Locomotive Customizable Underground Tunnel Narrow Gauge Tractor with Bearing & Pump 5T Capacity
Description
Gauge |
600/762/900mm |
|||
Wheelbase |
850mm |
|||
Full length |
3170mm |
|||
Wheel rolling circle diameter |
Φ520mm |
|||
Height from rail surface to driver's cab top |
1550mm |
|||
Frame width |
920x1082x1220mm |
|||
Minimum curve radius |
6m |
|||
Transmission mode |
Secondary drive |
|||
Heavy |
5T |
|||
Hourly traction |
7. 06kN |
|||
Hour speed |
7km/h |
|||
Rated power |
2×7. 5kW |
|||
Maximum traction |
12. 25kN |
|||
Maximum speed |
18km/h |
|||
Current system |
DC |
|||
Rated voltage |
90V |
|||
Control method |
Chopper speed regulation/Frequency conversion speed regulation |
|||
Braking method |
Mechanical/Hydraulic/Electric |
Product use conditions:
Frame：

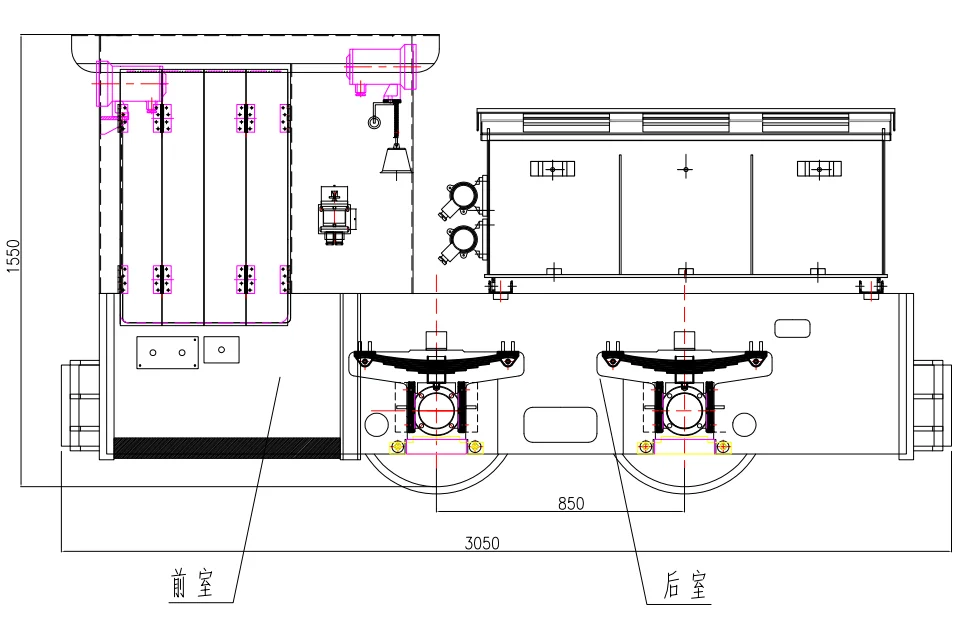

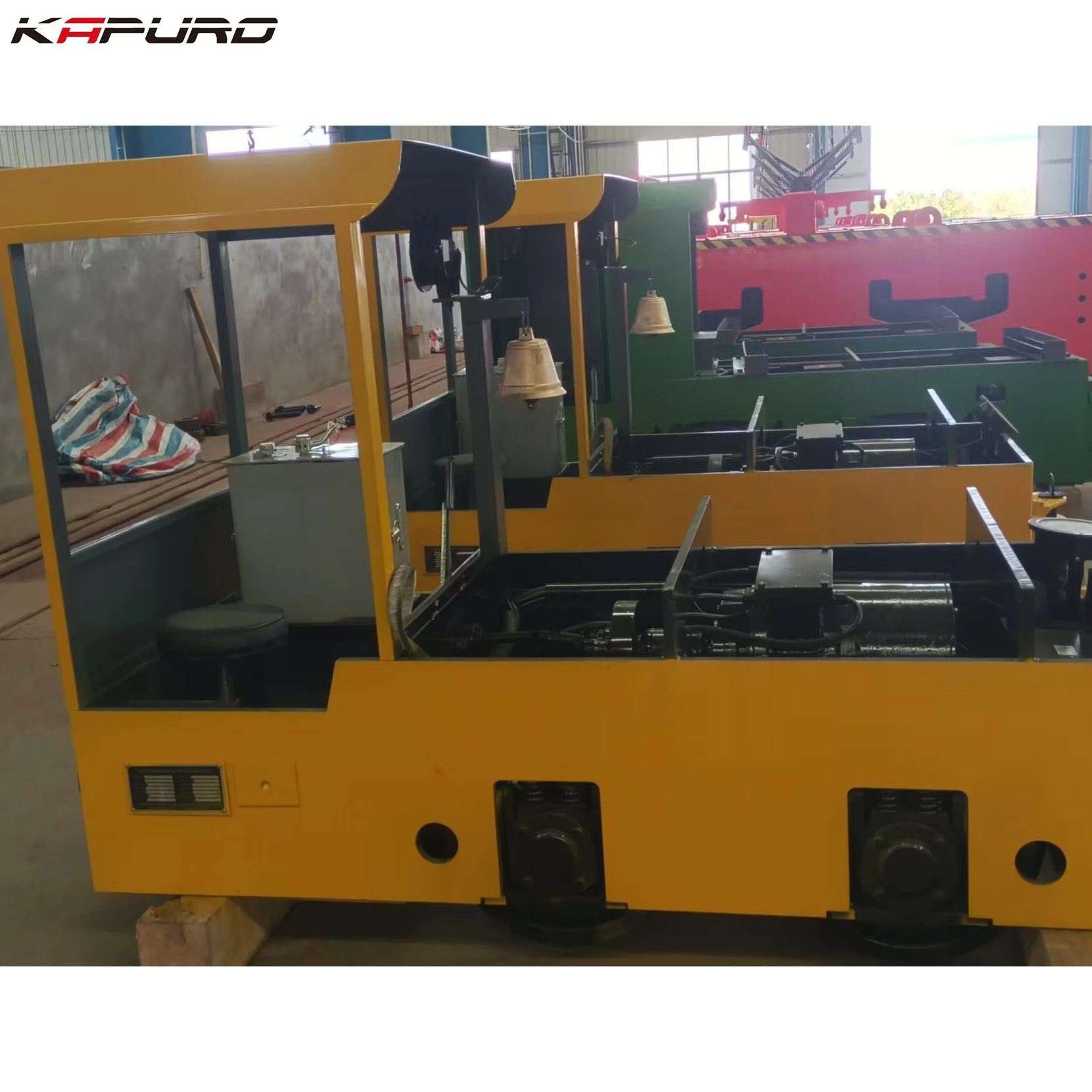

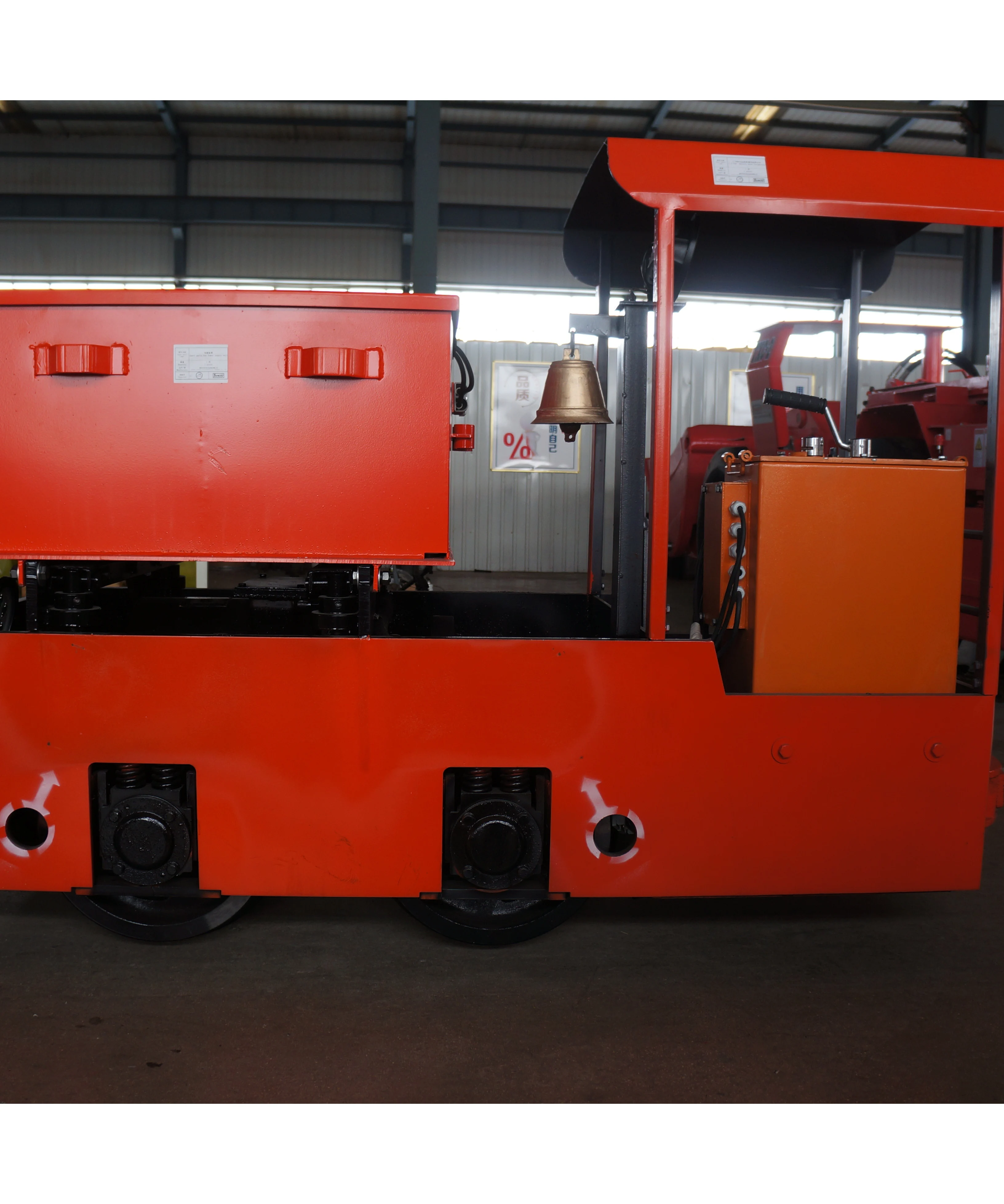

The frame is welded from steel plates into a box-shaped skeleton structure. It is the main component of the electric locomotive
and is divided into two chambers by a partition. The front chamber and the roof together constitute the driver's room. The
driver's room has driver operating facilities such as the speed governor. The rear chamber is the mechanical room, which is equipped with the running gear, brake device and some electrical equipment, such as electric motors.
and is divided into two chambers by a partition. The front chamber and the roof together constitute the driver's room. The
driver's room has driver operating facilities such as the speed governor. The rear chamber is the mechanical room, which is equipped with the running gear, brake device and some electrical equipment, such as electric motors.
Pre-sale
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand
customers’demand so that recommend the most suitable products for them.
In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
Post-sale
24 Hours Online service. When the equipment needs repair, we can provide online maintenance guides and support.
Services
Underground mining equipment requires regular maintenance to ensure optimal performance and safety. This may involve routine inspections, lubrication, replacement of parts, We can provide some tool boxes and provide a lifetime supply of spare parts.
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand
customers’demand so that recommend the most suitable products for them.
In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
Post-sale
24 Hours Online service. When the equipment needs repair, we can provide online maintenance guides and support.
Services
Underground mining equipment requires regular maintenance to ensure optimal performance and safety. This may involve routine inspections, lubrication, replacement of parts, We can provide some tool boxes and provide a lifetime supply of spare parts.
