KP-400 Improve Water Yield Well Drilling Machine Factory Direct Drilling Equipment 400m Water Well Drilling Machine

Get a Quote
Description
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-13
Product Name
KP-400 Water Well Drilling Rig
Max dr illing depth
400m
Max dr illing diameter
Φ350mm
Engine brand
yuchai
Rated power
92/6cy lkw
Lifting force
24t
Speed of fast lifting
30m/min
Feeding force
8T
Speed of fast putting down
60m/min
Max feeding stroke
6600mm
Rotary torque
8000/4000Nm
Rotary speed
70/140r/m in
Travel speed
2.5Km/h
Grade ability
21°
Lifting force
1.5T
Dr illing rods diameter
89/102mm
Length x Width x Height
5750x1930x2400mm
Machine weight
8.5T
Request a Free Consultation & Catalog
Main Advantages:
The drilling rig is compact, structurally sound, and has small transport dimensions. Its aesthetically pleasing design offers superior cost-effectiveness compared to other brands.
Only through focus can one achieve professionalism and long-term success.

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-14


1. High Structural Strength: Utilizing high-grade plates and profiles, and featuring a specially designed swivel base for the outriggers, ensuring overall stability.
2. Superior Outrigger Performance: Employing cold-drawn seamless tubing with a reasonable
gap between the inner and outer tubes; a top cover plate + pin structure prevents mud and sand ingress; universal feet adapt to complex terrain and facilitate maintenance.



3. Precise Slide Fit: An integrated inner slide with a conical compensation structure
and wear-resistant plate design ensures smooth extension and retraction, minimal sway, and low wear.
4. High Power Head Precision: The housing is machined in a horizontal machining center, ensuring good concentricity and enhanced
strength after quenching.

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-15
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-16


5. Convenient Maintenance: The engine compartment covers rise and fall with the slide, facilitating the inspection and maintenance
of engine components.
6. Comfortable and Safe Operation: The control handle is integrated into the control panel, with clear markings, a wide field of
vision, and smooth operation.


7. Reliable Hydraulic System: The pipeline layout is optimized, using high-quality connectors and protective sleeves to prevent
oil leaks and cracking, and ensuring wear resistance.
8. Low Maintenance Costs: Sprockets are equipped with bearings and oil
seals, reducing maintenance needs.
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-17
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-18


9. Excellent Heat Dissipation: A large radiator ensures stable oil and water temperatures.
10. Optimized Oil Filtration: The hydraulic oil tank has a built-in oil suction device, improving filtration efficiency.
11. Durable and Aesthetically Pleasing
Coating: Structural components undergo sandblasting/shot blasting treatment, enhancing paint adhesion and overall appearance.
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-19
Pre-sale
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand
customers’demand so that recommend the most suitable products for them.
In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
Post-sale
24 Hours Online service. When the equipment needs repair, we can provide online maintenance guides and support.
Services
We have completed a comprehensive upgrade from an "equipment supplier" to a "mine material handling solutions provider." Today, we are committed to providing you with integrated solutions covering the entire "tunneling, material handling, and transportation" process, offering more comprehensive equipment support to help you significantly improve mining efficiency and reduce overall operating costs.
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-20
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-21

Underground Stone Crusher

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-22

Underground Wool Prying Trolley

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-23

Underground Service Car

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-24

Mining Cart

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-25

Underground Truck

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-26

Small Underground Truck

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-27

Mucking Loader

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-28

Locomotive

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-29

Drilling Rig

product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-30
product kp 400 improve water yield well drilling machine factory direct drilling equipment 400m water well drilling machine-31
1. who are we?
We are based in Shandong, China, start from 2021,sell to Western Europe(20.00%),Africa(20.00%),Eastern Europe(20.00%),South America(20.00%),North America(20.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
We offer one-stop procurement of equipment including Underground Scooptram, Underground Trucks, Underground Service Trucks, Rock Breaker & Prying Trolley, Drilling Rigs, Rock Drilling Jugs, Electric Locomotives, Slag Loaders, Loaders, and Customized Products & Parts.

4. why should you buy from us not from other suppliers?
Yantai Kapuro Electromechanical Equipment Co.,Ltd.established in 1998, is one of the professional total solution suppliers of mining machinery and constructionmachinery with 24 years of production,sales and services. The product coverage continues to ex

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese

Get a Free Quote

Our representative will contact you soon.
Email
Name
Mobile/WhatsApp
Company Name
Message
0/1000
Recommended Products
Kapuro Customized Deep Mine LHD Underground Mining Machine 3m Bucket 6t Capacity Fully Hydraulic System Diesel Engine 136kw
Kapuro Customized Deep Mine LHD Underground Mining Machine 3m Bucket 6t Capacity Fully Hydraulic System Diesel Engine 136kw
MWB-120 Wheeled Electric Mucking Loader with Engine for Tunnel and Underground Mining Mini Rock Excavator
MWB-120 Wheeled Electric Mucking Loader with Engine for Tunnel and Underground Mining Mini Rock Excavator
Kapuro KP-200 High-Efficiency Diesel-Powered Water Well Drilling Rig with Gear Pump Motor New Max 200m Depth
Kapuro KP-200 High-Efficiency Diesel-Powered Water Well Drilling Rig with Gear Pump Motor New Max 200m Depth
CE & ISO Certified Kapuro KP-300 Water Well Drilling Rig, Manufactured to International Quality & Safety Standards
CE & ISO Certified Kapuro KP-300 Water Well Drilling Rig, Manufactured to International Quality & Safety Standards

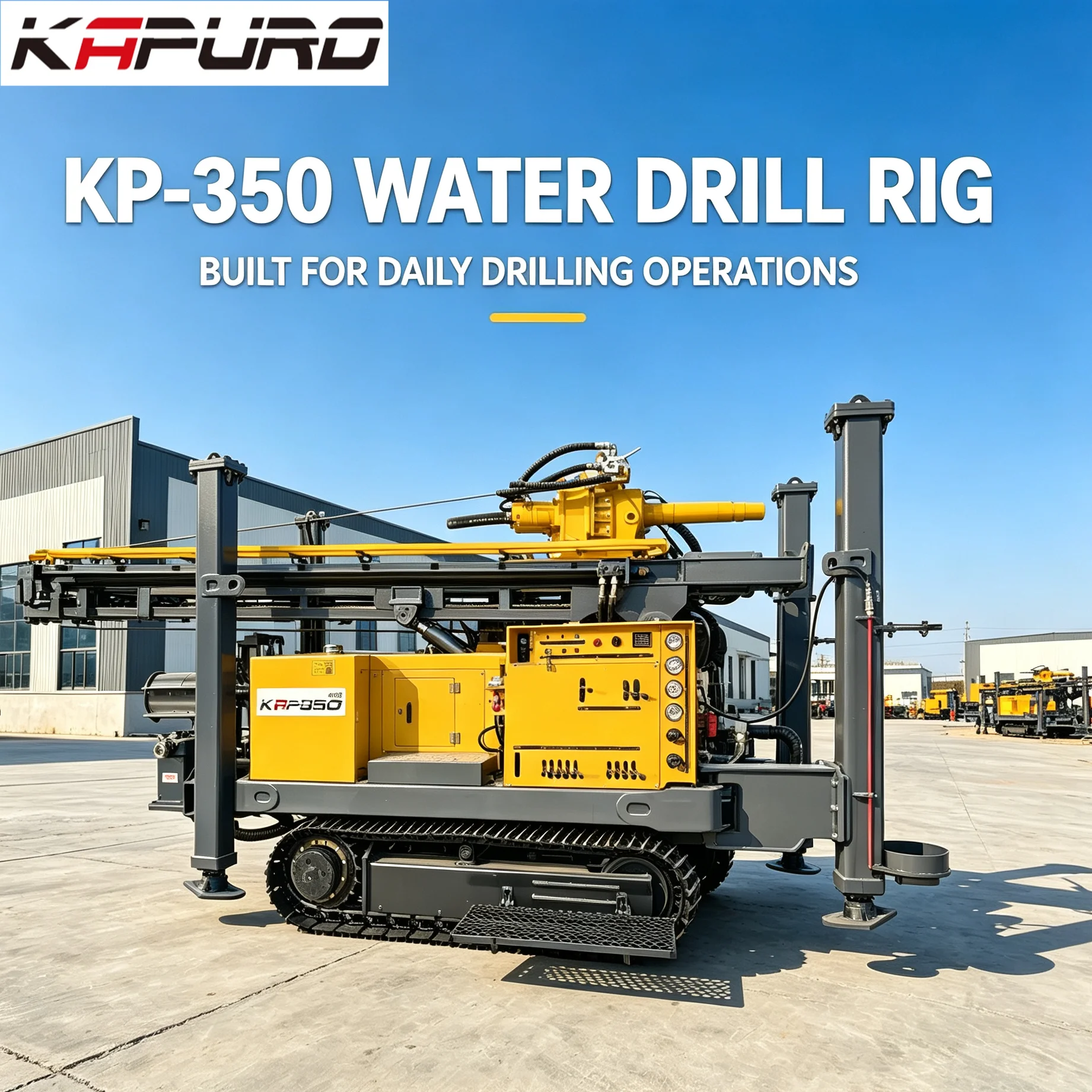

KP-350 Robust Diesel-Powered Water Well Drilling Rig with Motor & Bearing Low Fuel Consumption and Low Maintenance Cost
