Product General Information:
| Place of Origin | China |
| Model Number | KP-5 |
| Dimension | 6800*2200*2000mm |
| Drilling Depth | 40m |
| Drilling diameter | φ90-φ200mm |
| Condition | New |
Description:

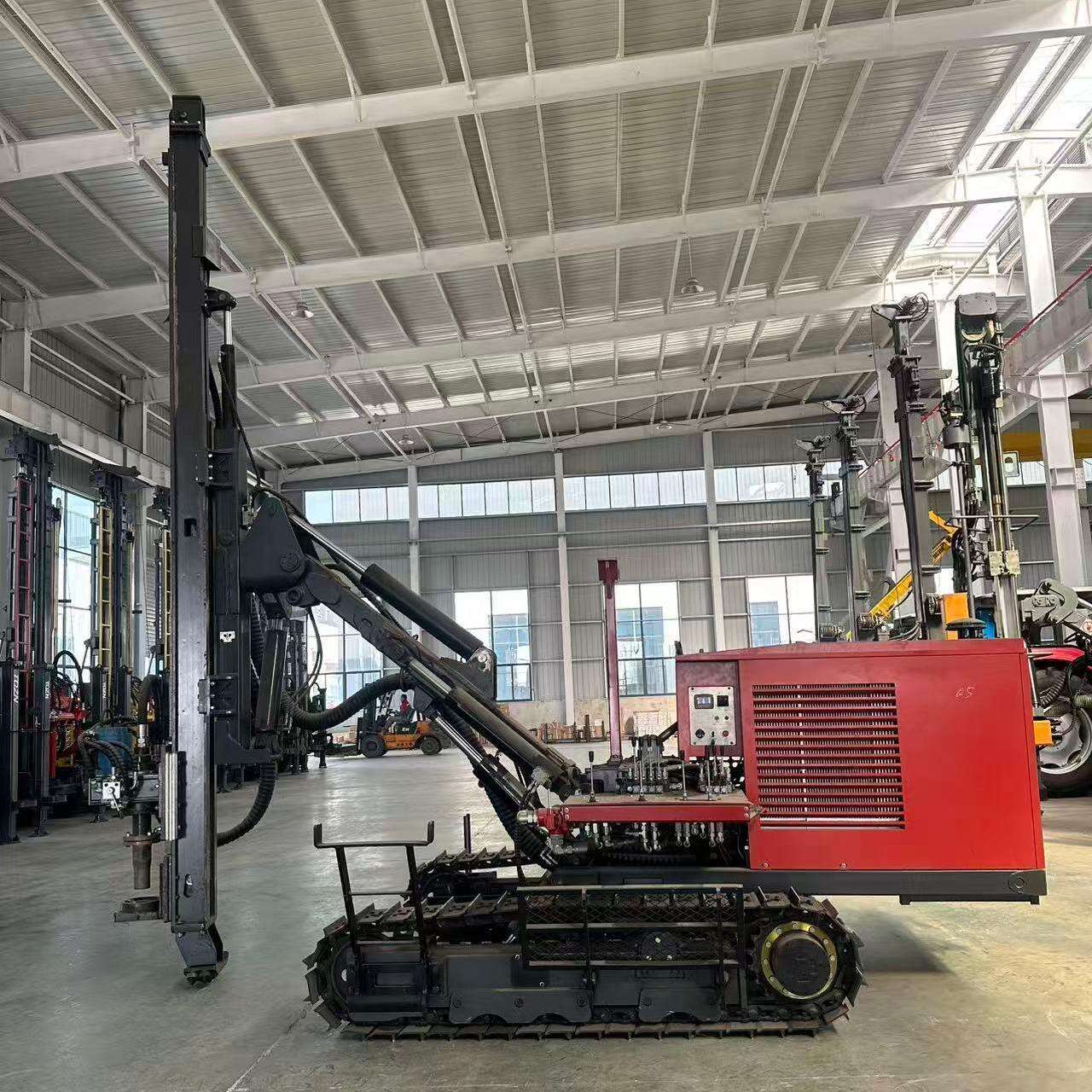

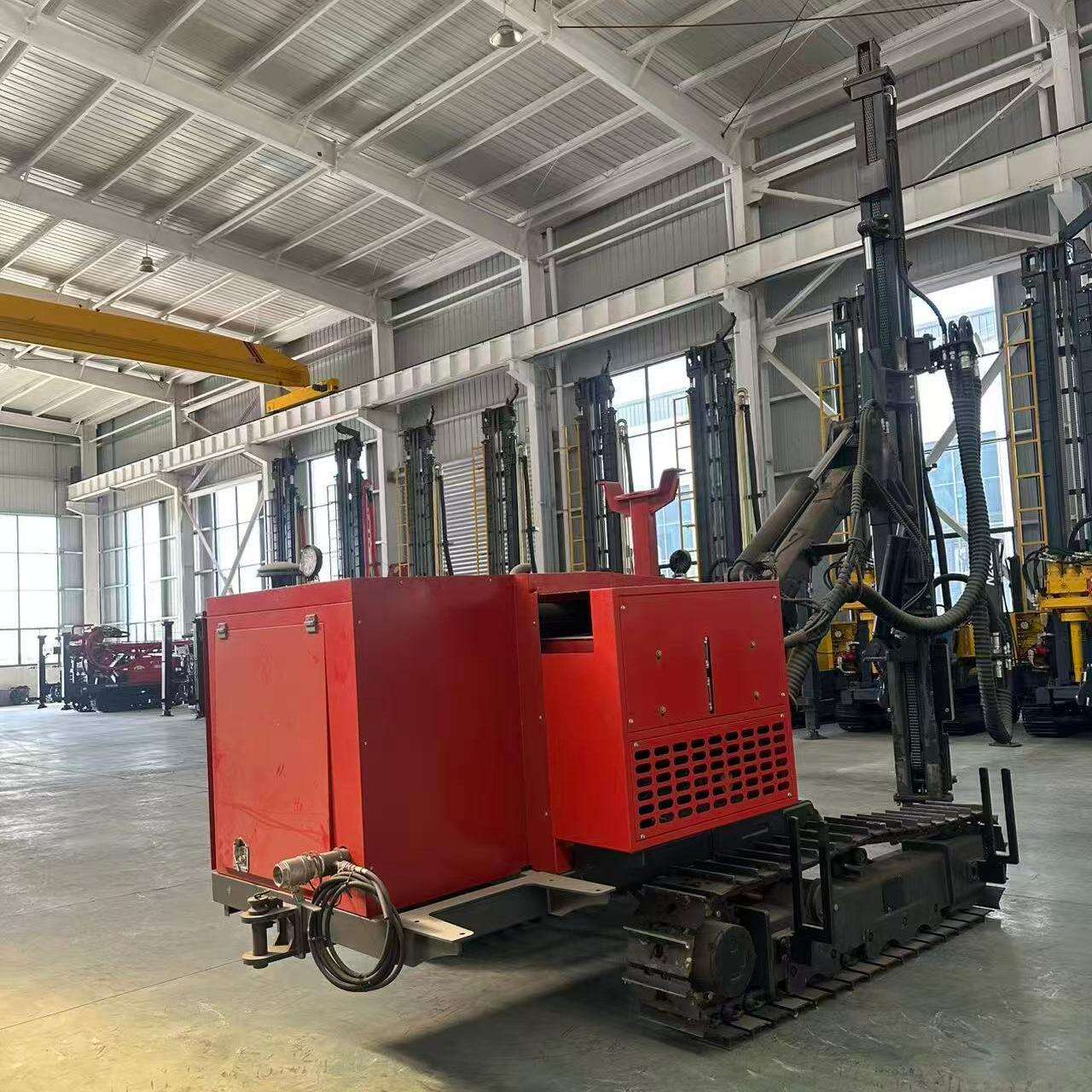

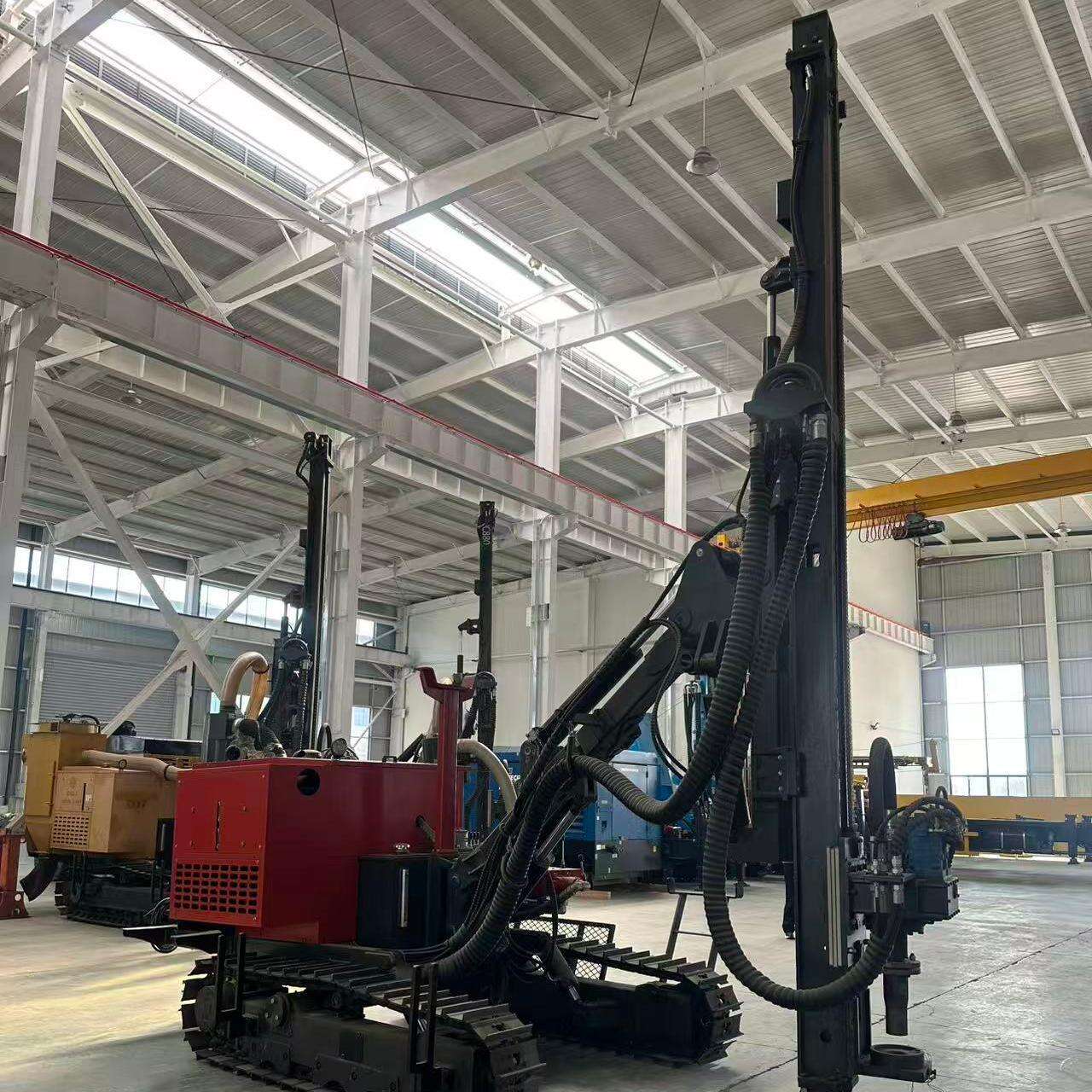

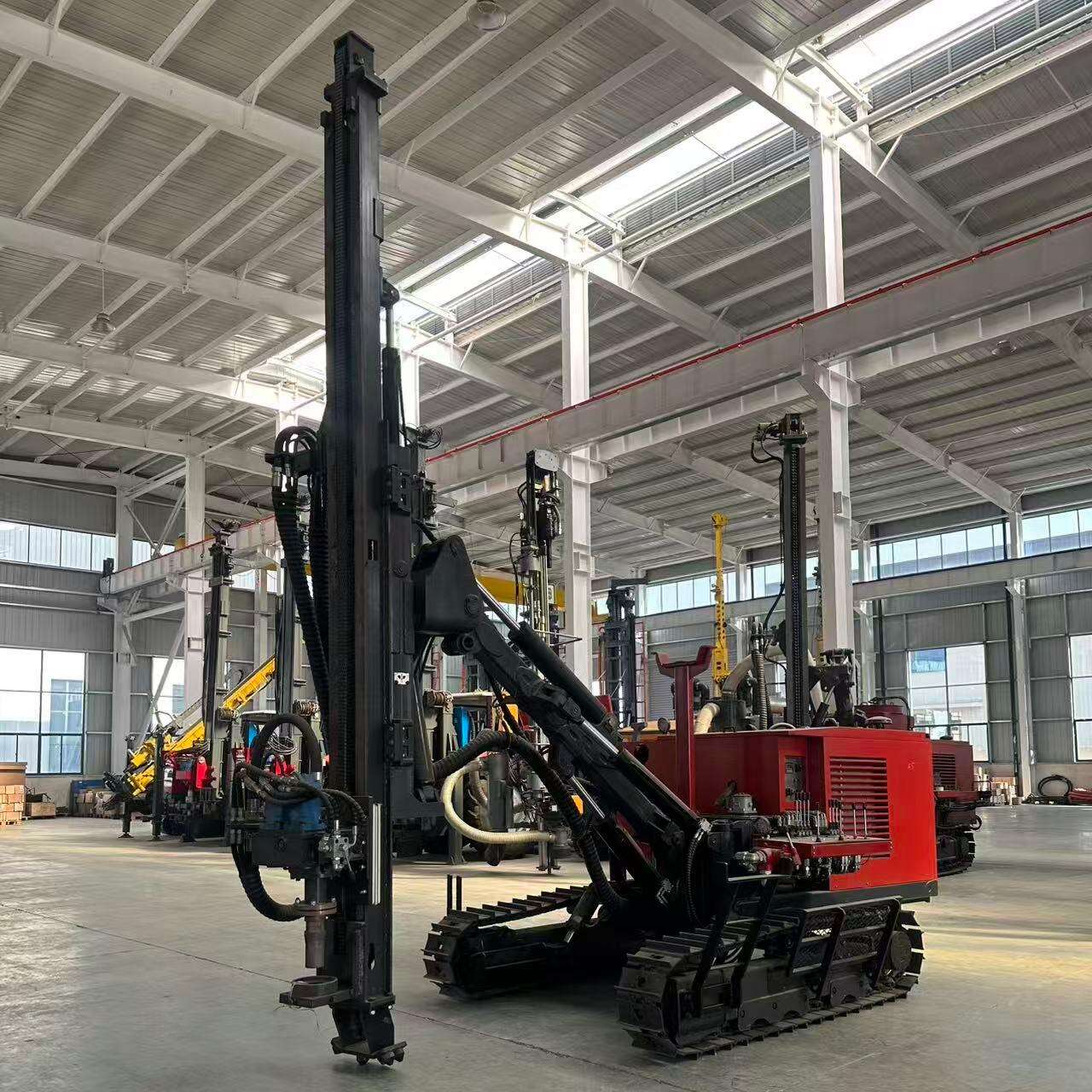

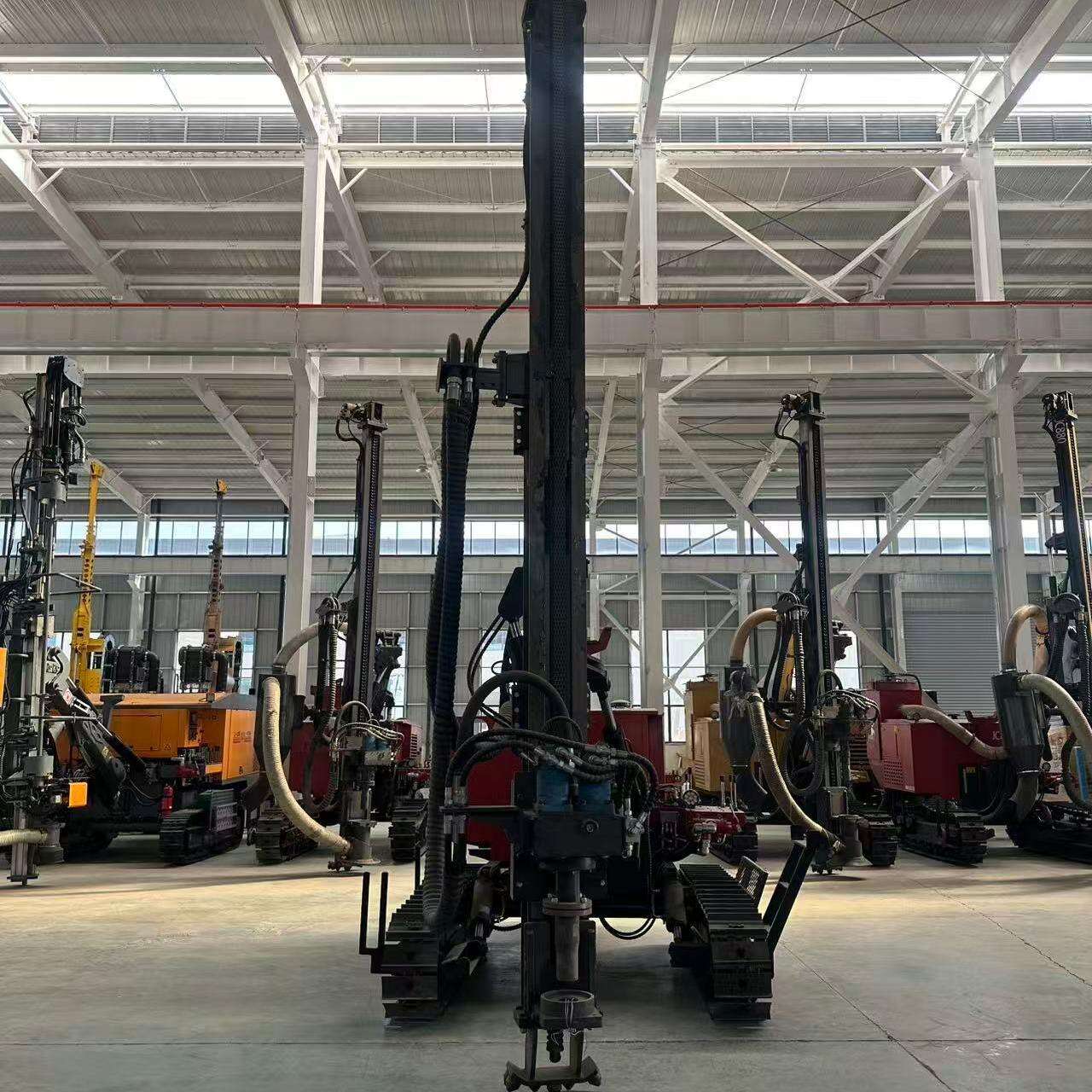

The photovoltaic blasting drill rig is a highly efficient rock drilling equipment specifically designed for the foundation construction of photovoltaic power plants. It primarily uses a down-the-hole hammer impact and rotation method to drill blast holes in hard rock formations, creating pathways for subsequent pile foundation installation. Its core features include high torque and high impact energy, and it is typically equipped with a crawler chassis and a large-angle adjustable drill arm to adapt to the construction needs of complex photovoltaic sites such as mountainous and hilly areas, enabling fast and precise drilling operations.
Specifications：
| Model | Parameters |
| Hole diameter | φ90-φ200mm |
| Drilling depth | 40m |
| Walking speed | 2.2km/h |
| Applicable rock hardnes | F=6-20 |
| Air consumption | 8-28m³/min |
| Working air presure | 0.7-2.5MPa |
| Maximum turning torque | 5000N.m |
| Maximum lifting force | 3.5T |
| Engine power | 73.5kw |
| Rotation rate | 0-110rpm |
| Rated propulsion speed | 46m/min |
| One push length | 3.3m |
| Maximum inclination angle of carriage | 160 ° |
| Maximum swing angle of carriage | left56 ° 、right35 ° |
| Maximum horizontal swing angle of drill boom | left、right45 ° |
| Maximum horizontal drilling height | 3.3m |
| Compensation length | 1.2m |
| Minimum ground clearance | 6800*2200*2000mm |
| （16MPa）Swing motor power | 5800kg |
Competitive Advantage:
1. High Structural Strength: Utilizing high-grade plates and profiles, and featuring a specially designed swivel base for the outriggers, ensuring overall stability.
2. Superior Outrigger Performance: Employing cold-drawn seamless tubing with a reasonable
gap between the inner and outer tubes; a top cover plate + pin structure prevents mud and sand ingress; universal feet adapt to complex terrain and facilitate maintenance.
3. Precise Slide Fit: An integrated inner slide with a conical compensation structure and wear-resistant plate design ensures smooth extension and retraction, minimal sway, and low wear.
4. High Power Head Precision: The housing is machined in a horizontal machining center, ensuring good concentricity and enhanced strength after quenching.
5. Convenient Maintenance: The engine compartment covers rise and fall with the slide, facilitating the inspection and maintenance of engine components.
6. Comfortable and Safe Operation: The control handle is integrated into the control panel, with clear markings, a wide field of vision, and smooth operation.
7. Reliable Hydraulic System: The pipeline layout is optimized, using high-quality connectors and protective sleeves to prevent oil leaks and cracking, and ensuring wear resistance.
8. Low Maintenance Costs: Sprockets are equipped with bearings and oil seals, reducing maintenance needs.
After-sale Service
Pre-sale
We hope to establish a good, long-term and mutually beneficial relationship with our customers. We will understand customers’demand so that recommend the most suitable products for them.
In sale
Customers’ requirements will be put in the first place. During this period, we will communicate with customers in time if they have any questions need to be confirmed.
Post-sale
24 Hours Online service. When the equipment needs repair, we can provide online maintenance guides and support.
Services
We have transcended the role of a traditional equipment supplier, fully upgrading ourselves to become your "end-to-end mining material handling solutions partner." We focus on the seamless integration and overall optimization of tunnel boring, material handling, and transportation processes. By providing integrated solutions and comprehensive equipment support, we empower you to maximize mining efficiency and fundamentally reduce operating costs.
Manufacturing Strength：
● Kapuro has been dedicated to the research and development of hydraulic drilling rigs for over 30 years, offering a wide range of product specifications and strong market applicability. The drilling rigs can reach drilling depths of 200-2000 meters and drilling diameters of 100-800 millimeters, fully meeting market demands and earning the trust of customers.
● Water well drilling rigs are widely used in water well drilling and geothermal infrastructure drilling operations; air-lift reverse circulation drilling rigs and fully hydraulic core drilling rigs are mainly used in mineral geological surveys, hydrogeological surveys, and oil and gas field exploration, efficiently obtaining geological samples in complex environments; down-the-hole drilling rigs are used in mining, transportation, and infrastructure blasting projects, and are also widely used in photovoltaic operations due to their powerful performance and stable operation.
● While cultivating and accumulating experience in the industry for many years, Kapuro continuously improves its intelligent manufacturing capabilities and innovates, specializing in the research and manufacturing of new products, and is committed to providing high-quality drilling rig products to its customers. Kapuro is willing to work with new and old customers to create top-tier drilling machinery and embark on a brilliant new chapter together.
FAQ
1. Who are we?
Our headquarter is located in Shandong, China. Our strength manufacturing plant. We adhere to the leading technology, quality, integrity-based, the pursuit of excellence for the purpose.
2.Will you provide some wearing parts of your products?
Yes, of course.If you need, we will provide with the products.
3.How is the quality of your products?
We have been approved of ISO, and our products accord with national and international standards.Our products all contain warranty.
4.What payments term do you accept?
We accept L/C,T/T and D/P etc,T/T goes with 30% advanced payment after signing contract or order confirmation.
